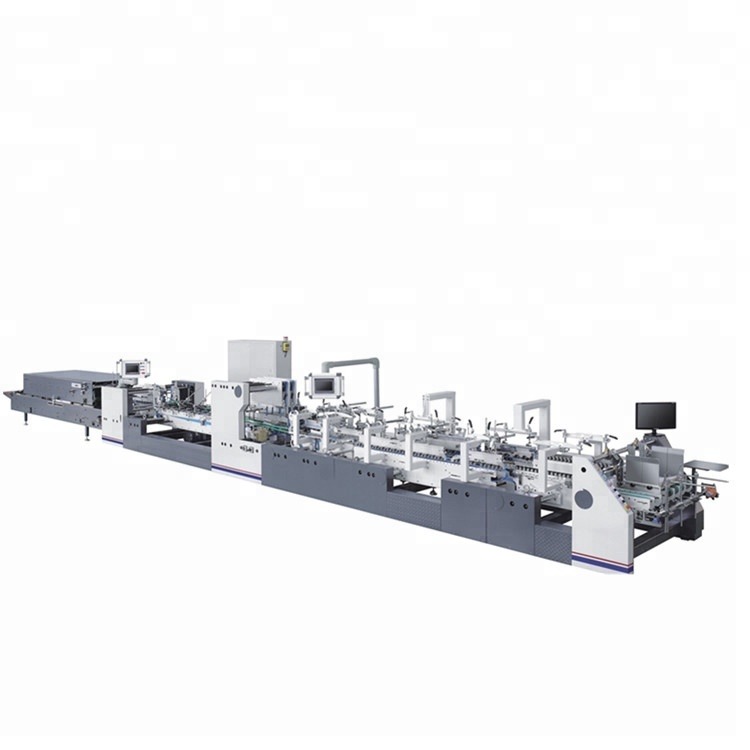

Factory small automatic corrugated box making machine making machines

Feeder

^{ Fully Automatic Feeder With Servo Motor 5kw
 30mm Friction Belts Soft Rubber Compound
 3 Front paper supports (Quick adjustment for thickness of substrate)
 2 Paper Side Guides
 Vibrator
 Full Colour Video Monitor (Supervise view final product at the end of the Machine)}

Aliening unit

 2 Bottom Transport Carriages (fitted with 34mm wide Belts)
 1 left Hand Side Squaring Guide
 1 Right Hand Side Squaring Guide
 Adjustable top Carriages fitted with independent lever system which can be independently applied giving the desired pressure required for the alignment of Substrate carton blank
 Electronic movements of carriages in and out of working position (Via remote control)

Pre Fold Unit

 1st and 3rd crease
 Bottom left had side carriage 43 millimeter wide belt
 3 Bottom Carriages
 3 Top carriages
 Electronic movements of carriages in and out of working position (Via remote control)

Crash bottom lock unit

 Two crash bottom lock units
 3 Bottom Transport carriages
 3 Top Transport carriages
 4 Sets of crash lock hooks
 3 Sets of diagonal folding shoes 2 Unit per Set
 Bottom chromed support bars
 Electronic movements of carriages in and out of working position (Via remote control)

4 And 6 Corner

 2 Servo Drive Motors 2kw Each
 3 Folding Hooks 4 Corners
 3 Folding Hooks 6 Corners
 6 Corner Box Lid Can Be Folded from the Left or Right hand side Of Machine
 Moveable Touch screen Commander Module (For programing Measurement's: Speed and position and Electronic angel of the folding Hooks)

Final Folding Unit

 Folding 2 and 4 crease
 Equipped with 2 glue tanks 1 Left 1 Right with 5 M/m disc
 Guide rollers Left and right
 Adjustable speed control of belts left and right
 Movement of carriages electronic (via remote control)

Trombone unit

 Double Trombone (Telescopic)
 Moveable Touch screen Commander Module

 Batch counter Pneumatic kicker for batch count quantity

Pressing unit

 1 Drive Motor 3.7 KW
 Front and Backward position
 Pneumatic pressing (Adjustable via Pneumatic Regulator valves)
 Pneumatic Front Stops (Squaring Device)
