Different Boxes Making Machine High Quality Automatic Paper Box Box Making Machine Multifunctional Paper Machine Factory

1 Set
MOQ
$20,000.00(>=1 Sets)
Precio
Different Boxes Making Machine High Quality Automatic Paper Box Box Making Machine Multifunctional Paper Machine Factory
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Product Type: paper container machine
Processing Type: forming
Voltage: 380v
Power: 4.5KW
Dimension(L*W*H): 2950*1300*1300MM
Weight: 2000KGS
Warranty: 1 Year
Production Capacity: 100%
After-sales Service Provided: Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Model: ZX-1200
Name: Paper box machine
Speed: 80-180pcs/min
Function: Different boxes making machine
Control system: PLC+HMI
Raw material: 180-600gsm card board /ivory paper/ corrugated paper thickness :1.5mm
Información básica
Model Number: ZX-1200
Pago y Envío Términos
Packaging Details: wooden case satand for sea transpotation.
Supply Ability: 30 Set/Sets per Month
Descripción de producto
Product Application

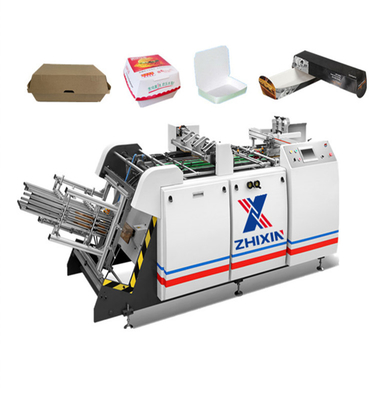

                           High quality automatic multifunction paper box making machine

          Automatic Paper box making mahcine can making many differnet kinds of paper box by changing mold.

Such as hamburger paper box, chips paper box, hot dog paper box, take away paper box, trangle pizza paper box, square paper box with window, etc

       With firm structure, high quality, low noise and high efficiency. It has paper feeding unit, adjusted unit, glue unit, forming unit, finished products collecting unit and also counting unit.
SPECIFICATIONS FOR  PAPER BOX MAKING MACHINE
Speed
80-180pcs/min (different paper box shapes,
the speed is different )
Paper material
180-600gsm card board /ivory paper/
 corrugated paper thickness :1.5mm
Paper size
Box length: L 100-450mm and angle: 5° -40°
Box width :B 100-580mm
Edge height H 15-200m
Box size
Max: 450mm*400mm, Min:50mm*30mm
 Air requirement
6kg/cm²*200 L/min
Power
4.5kw/h
Voltage
220v  / 380v,  50hz
Machine size
3.5m(L)*1.3(W)*1.3(H)
Weight
2000kgs

Main Features

1) Machien can add automatic cold glue system.

2) Automatic paper box counting label unit.

3) All machine servo motor, much more quietness, and less power consumption.

4) PLC+HIM control Machine, more easier operating.

Certifications
Detailed Images

Machine Parts

Name: All machine screws

Material: stainless steel

Original: China

Better details for machine,  suit for long time sea transport.do not rust.

Machine Parts

Name: Dam-board
Material: Algam
Original: China
Dam-board underneath paper transfer part , paper waste will no drop on ground, protect flywheel system running.

Machine Parts

Name: Magnetic valve
Brandl: AIRTAC
Original: TAIWAN

Machine Parts

Name: BearingS
Brand: NACHI-QUEST
Original: JAPAN
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Paper box machine Packaging
Size
2.95(L) * 1.4 (W) * 1.4 (D)
Weight
2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Paper box machine Packaging
Sea transport



Packaging Details
20GP     L × W × H(m)           Weight  CBM
Iinner: 5.898×2.352×2.385   17.5t    28m³
Outer :6.058×2.438×2.591   17.5t    28m³

40GP L × W × H(m)              Weight   CBM
Iinner: 12.032×2.352×2.385   26t     58m³
Outer:12.192×2.438×2.591     26t    58m³
