Inicio /Productos/Máquina de la fabricación de cajas de la cartulina/Corrugated Cardboard Making Cardboard Box Paper Making Creasing Single Facer Machine From Corrugator Production Line Price

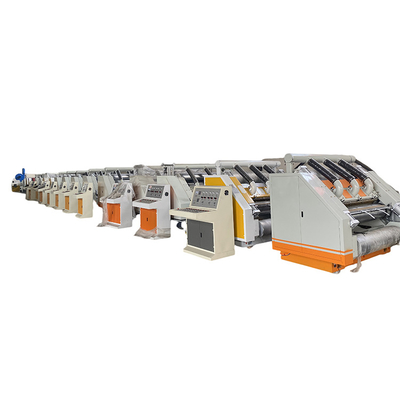

Corrugated Cardboard Making Cardboard Box Paper Making Creasing Single Facer Machine From Corrugator Production Line Price

1.0 Sets
MOQ
Corrugated Cardboard Making Cardboard Box Paper Making Creasing Single Facer Machine From Corrugator Production Line Price
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Year: 2022
Weight: 11000 KG
Automatic Grade: Automatic
Machinery Capacity: Please contact customer service
Key Machines: other
Packaging Material: other
Product name: corrugated paper board production line
Use: corrugated paper board making
Function: High Effieciency
Keyword: Pizza Carton Machine
Advantage: Easily Operated
Speed: High Speed
Brand: Chenxiang
After-sale service: Online support
Item: Automatic Bag Packaging Machines
Información básica
Pago y Envío Términos
Supply Ability: 100 Set/Sets per Year
Descripción de producto
Electric Mill Roll Stand
1. Symmetrical structure can be installed at the same time two bundle of original tube paper, do not stop to change paper work. 2. Electric drive can be used to lift, clamp, loosen and move the original paper. 3. The paper head adopts mechanical expansion design. 4. The tension control adopts pneumatic brake, manual control, and on-line control of the machine.


NC Rotary Sheet Cutter Machine
1. Rotary sheet cutter machine can do single corrugated cardboard vertically and horizontally cutting. It has change order fast and high cutting precision, working speed fast etc .make little waster, when changed the order . 2. This machine adopt touch screen to operate. 3.The upper feeding roller is high quality rubber roller, and the lower feeding roller is anilox roller.


Paper Collector
1.The automatic flute collector machine occupies small area, and save manpower. 2.This machine can realize automatic stacking and stacking height is 100mm. 3.Main motor:4kw, belt motor:1.5kw. 4.Frequency Changeer 4KW, Temperature control button and electrical part:Schneider, Bearing:HRB 5.Working width:1400-2000mm, Min stacking length:400mm, max stacking length:1350mm, machine can collect 4 units of paper.

Parameter
Unit
Model
Working Width
mm
1400-2000
Working Speed
m/min
0-60m/min
Flute Type
A/B/C/E/F
Heating Type
Electric/Steam
Cutting length area
mm
300-9999
Thickness of cutting
mm
1-2
Paper Weight
gsm
50-300
Power Capacity
kw
25
Voltage
VAC
380
Machine Floor Size
mm
14000*3800*1800
1. Are you a factory or trading company? We are both a factory and a trading company in this field . 2. What is the terms of payment you accept? We usually accept the T/T payment, we need 30% of total amount as deposit, pay the 70% balance before delivery, but we can also accept the L/C. 3. Where is your factory located ? How can I visit there? Our factory located in Dongguang County, Hebei Province, China., near to the capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we will pick you up there. 4. How does your factory do regarding quality control? Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
