Caracteristicas

Especificaciones

Type: Packaging Line

Applicable Industries: Food & Beverage Factory, Restaurant, Food Shop, Printing Shops, Food & Beverage Shops, corrugated carton box manufacture

Showroom Location: Egypt, India, Mexico, Russia

Condition: New

Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles

Packaging Type: Film

Packaging Material: Plastic

Automatic Grade: Automatic

Driven Type: Electric

Voltage: customizable

Dimension(L*W*H): 2500X1000X1500mm

Weight: 1ton

Warranty: 1 Year, 12 months

Key Selling Points: Automatic

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Bearing, Motor, Pump, Gear, PLC, Other, Pressure vessel, Engine, Gearbox

Name: Automatic thin blade slitter scorer machine

Usage: Making Carton box

Keywords: Slitter scorer thin blade

Function: slitter scorer

Speed: 100m/min

specification: 5 knife 8 press line

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: Egypt, Brazil, India, Mexico, Russia

After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service

Certificación: CE ISO

Información básica

Certificación: CE ISO

Pago y Envío Términos

Packaging Details: Standard

Supply Ability: 500 Set/Sets per Year

Descripción de producto

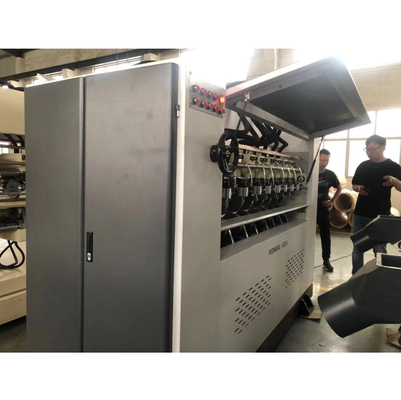

Corrugated Carton Box Making Automatic Thin Blade Slitter Scorer Machine

Structural features:

1.Overcome the phenomenon of collapsed cardboard when cutting in the conventional double-knife and slitting machine. The cutting board is smooth and the quality is obviously improved.

2.The whole machine can move left and right, and it is regulated by a cycloidal reducer.

3.Cutting knife and pressure line adjustment is convenient, error is ± 0.5mm, there is automatic knife sharpening device, which can realize multiple functions such as time-sharpening knife and interval grinding knife.

4.This machine adopts 5-knife and 8-wire type, the blade is made of tungsten alloy steel, and its service life is not less than 3 million run meters.

5.Slitting blade electrically adjusted,work with dual smooth shaft guide way,pheumatic locking,assured the stable operation,fast order changing.

General technical parameters:

1.The maximum working width: 1800mm.

2.Mechanical configuration: 5 knives and 8 lines

3, the minimum paper width: 135mm maximum paper width: 1800mm.

Company information :

Related Machine :

FAQ

Q:Are you manufacture or trading company?

A:we are manufacture , our factory set up on 1999, and before we exported our products are mainly supply to the trading company , so we are the source factory, welcome to be our agency.

Q:Do you inspect the finished products?

A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .

Q:Does the packing strong?

A:Yes, of course! All of our export packing with strong wooden tray, all to meet the export packaging standards.

Q:How about after-sales service process?

A:When your machine has problem, contact our sales and we will solve your problem as soon as possible.We have after-sale office in China, Vietnam, India, Bangladesh, Italy.

Q.Where is your factory?

A:Our factory located in Development Zone, East Of DongGuang County, CangZhou City, Hebei Province,China,welcome to visit our factory!

Q. Do you have Import & export right?

A:Yes , we have , so we can export the carton machines to you directly , without any trading company agency.
