Factory automatic paper roll clamp with automatic tension control for used cardboard box making machine corrugated cardboard production line

1.0 Sets
MOQ
$20,000.00(>=1 Sets)
Precio
Factory automatic paper roll clamp with automatic tension control for used cardboard box making machine corrugated cardboard production line
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Type: Packaging Line
Applicable Industries: Manufacturing Plant
Showroom Location: Viet Nam
Condition: New
Application: Manufacturing Plant, Corrugated Production Line/Laminating Machine/Printing Press
Packaging Type: Container
Packaging Material: Wood
Automatic Grade: Automatic
Driven Type: Pneumatic
Voltage: 380V
Weight: 2500kg
Warranty: 1 Year, 1 year
Key Selling Points: Non-Stop Paper Splicing
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
Product name: Auto Corrugated Splicer Machine
Paper connection: Overlap Connecting
Speed: 300-400m/min
Paper width: 1200-2550mm
Liner GSM: 50G/m2-350G/m2
Power Required: 380V, 50Hz, 20A
Control Power: 12V, 24V
Reaction: About 1 second
After Warranty Service: Video technical support, Online support
Local Service Location: Viet Nam
After-sales Service Provided: Online support, Video technical support
Certificación: CE ISO
Información básica
Certificación: CE ISO
Pago y Envío Términos
Packaging Details: Container
Supply Ability: 500 Set/Sets per Year
Descripción de producto
⭐Non-Stop Paper Splicing

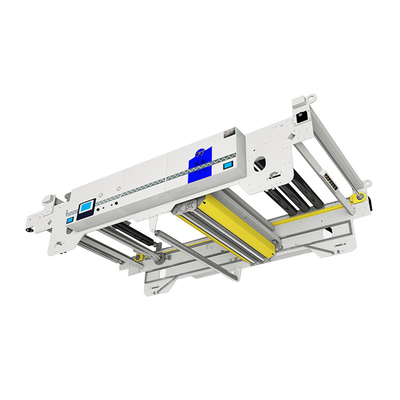

Fly300-400 Auto Splicer Machine for Corrugated Cardboard Production Line

❤Machine Frame Made Of High Quality Carbon Steel With Optimized Design.
Appearance Similar As Bhs,Germany. Strture Similar As Marquip Ward United.
Design speed:
Model300-280m/min(Flute liner)300m/min(Top liner)
Model400-400m/min(Flute liner)380m/min(Top liner)
Paper Connection:
overlap connecting
Design width:
the maximum paper width can reach 2550mm
Weight of the original paper:
50g/m2~350g/m2
Paper reaction completion time:
about 1 second
Gas source:
a minimum of 0.6MPa dry clean air source
Power demand:
power supply:380V, 50Hz, 20A control power:12V,24V
Paper frame brake:
pneumatic brake/ magnetic powder brake
Why Choose Us?
❤Be Suitable For Liner Above 50gsm
❤High Success Rate, Lower Wastage, Improve Efficiency.
❤Easy To Change And Prepare Paper. Friendly For Operators.
❤Easy Maintaining To Guarantee The Low Failure Rate.
❤Double Servo Control With Tension Control Realize The Splicing Speed Match The Paper Weight
❤Control The Tension To Ensure The Quality Of Cardboard And Avoid Breaking The Paper
❤With Touch Screen To Help Us Maintain And Monitoring The Data
Q1. Are you manufacturer?
A: Yes. We are manufacturing factory for auto splicer, with production capacity of 500+ set per year.
Q2. Where is your factory located?
A:Our factory is located in Hegui Industrial Park, Lishui, Nanhai District, Foshan City, Guangdong Province, China.
Q3. Where is the nearest airport?
A:Guangzhou Baiyun International Airport
Q4. Where is the nearest sea port?
A:Foshan / Nansha /Shenzhen
Q5. What’s the size and speed?
A:We produce auto splicer with paper web size from 1400mm to 2800mm.
Machine designed speed from 150m/min to 450m/min (paper liner speed)
Q6. Where is the machine applied?
A:The auto splicer is usually applied in the corrugated cardboard production line, as well as the high speed slitter/ sheeter for offset printing.
Q7. Where is your auto splicer being exported before?
A:Vietnam, Thailand, Myanmar, Philippine, Malaysia, Indonesia, India, Egypt, Emirate, Bahrain, Saudi Arabic, Israel, Russia,
Lithuania, Mexico, Brazil, Argentina, Venezuela, Honduras, Korea and etc
