Caracteristicas

Especificaciones

Type: Gluing Machine

Applicable Industries: Manufacturing Plant, Food Shop, Printing Shops, Food & Beverage Shops

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2022

Warranty of core components: 1 Year

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Condition: New

Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles

Packaging Type: Cartons, Film, case

Packaging Material: Paper, Wood

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 3P 380V 50HZ

Dimension(L*W*H): 15x1.5x1.3m

Weight: 7500 KG

Warranty: 1 Year

Key Selling Points: Flexible Manufacturing

Product name: Glue Machine

Function: Paper Cardboard Box Gluing Machine

Glue type: Water Base Cold Glue

Box forming: Sides Fold

Speed: 400m/min

Folding way: 3 Folds 135 Degree

Paper material: A\B\E Corrugated

Quality: High Level

Advantages: Easy Operation

Max. gluing width: 700mm

Información básica

Pago y Envío Términos

Packaging Details: Export Wooden Case

Supply Ability: 150 Set/Sets per Month

Descripción de producto

Technical Specifications

Model			XCS-650PC-A	XCS-800PC-A	XCS-980PC-A
Linear box	Min/mm	Max/mm
L	120	800	800	800
W	150	650	800	980
H	80	315	390	480

Automatic lock box	Min/mm	Max/mm
L	120	800	800	800
W	170	550	700	900
H	80	265	340	440

Four coner box (optional)	Min/mm	Max/mm
L	120	800	800	800
W	150	550	750	900
H	20	150	150	150

Six coner box (optional)	Min/mm	Max/mm
L	120	800	800	800
W	240	550	750	900
H	20	120	120	120

Double sides box	Min/mm	Max/mm
L	160	800	800	800
W	150	550	750	900
H	15	50	50	50

Main Technical Parameters

Model	XCS-650PC-A	XCS-800PC-A	XCS-980PC-A
Suitabel material	200~650g/m² cardboard	200~800g/m² cardboard and N-E-F flute corrugated board
Speed range	0~300m/min
Linching speed	30m/min
Max blank width	650mm	800mm	980mm
Dimension(LWH)	1410013501400mm	1410015001400mm	1410016801400mm
Mechanical weight	4.5T	5.5T	6T
Mechanical power	13.5KW	17KW	19KW
Max thickness of folded box	12mm
Compressed air	6bar
Air Compressor capacity	10m³/h
Air tank capacity	60L

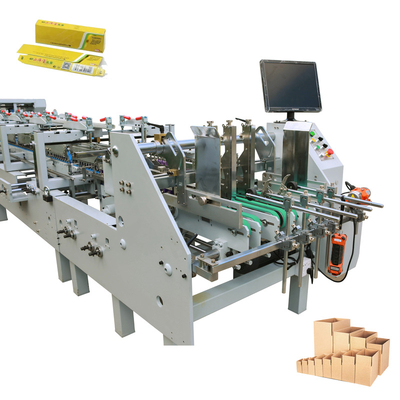

Product Photo

Company Information

Customer Visit

Our Team

Certification Show

FAQ

In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phonenumber, e-mail, whatsapp, etc.)

1. How long is the product warranty period ?
A: the product warranty period is 24 months since shipping date.

2. I am a foreign customers, if the machine works wrong, how your company solved ?
A: We have professional engineers, after receiving your request, we will solve your problems at first time.

3.Where can we buy the machine's parts?
A: Our company can provide machine`s parts for your any time.

4. Voltage in your country(price here based on 380v,50hz,3phase )?
A:220v/240v/380v/440v/480v or other customized available.

5.: Are you trading company or manufacturer?
A: We are manufactory, and we can give you lower price than those trade companies. Besides, customers from Alibaba can get a discount.
