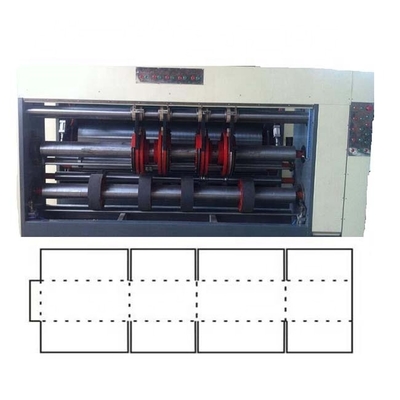

2 Color 1-4 Ply Cardboard Printing Slot Machine Making Corrugated Boxes

Main technical date of our cardboard printing slotting machine making corrugated boxes

Water ink 4 color printing(1-4 colors is optinal)
Diameter of printing roller: 488mm
Max cardboard sizes: 1920*1500mm
Min cardboard sizes: 550*450mm
Max printing size: 1720*1500mm
Printing roller diameter: 488mm
Min slotting space: 150mm
Max slotting length: 350mm
slotting width: 7mm
Working speed: 0-60 sheets/min
Suitable for: 3 layer, 5 layer, 7 layer cardboard (2-8mm)
Power: 3.5kw
Overall size: About 6200*3000*1700mm
Weight: About 7900kg

Characters of our cardboard printing slotting machine making corrugated boxes

1 ) The whole machine by high demand , reliability features and design and manufacture , machine operator friendly design, can be carried out in a short time to set , modify, perform , replacement, memory function, and accurate data

2 ) All the rolls are made of high quality steel, quenched and tempered , surface grinding, hard chrome plating

3 ) transmission gears using quality steel, heat treatment and grinding

4 ) gear closed loop spray lubrication , oil automatic balance device to keep the oil balance of each unit

5 ) phase adjustment with electric adjustment of the digital input type , with zero , memory and other functions ( optional PLC control combined with touch screen )

6 ) feed method can be used after the kick edge feeder or feeder

7 ) Main motor frequency adjustment

Main features of our automatic carton box printing slotting die cutting machine
* Feeding section
Using an independent front feed system, the up-down rubber roller press the
cardboard, guarantee stable and accurate feeding
* Printing section
Ink conveying system: anilox roller finishing coining, dynamic balance correction,
hard chrome plated, rubber roller finishing fine grinding, dynamic balance correction
also, make the ink transferring more good and the printing graphic more clear;
Printing unit is equipped with pre-pressing device, this means cardboard after
pre-press is not easy to break, and more good press line effect, is conducive to carton
boxes gluing production and following up processing.
* Transmission gear
Cross sliding module, no gap adjustment, high precision gears are wear resistance,
make sure the stable and reliable transmission.
* Electrical control
The use of China famous brands "Zheng Tai", "Shanghai People" , stable and durable.
Bearing use China's three major brands, "Harbin" "Wafangdian" "Luoyang" high
precision and long life.

For Europe South America market cardboard box making rotary die cutting machine

CE standard corrugated carton box folder gluer machine

Russia client for auto corrugated box printing machine

1) Supply you top performance carton box printing machine with best prices, you can chose different colors, with die cutting functions or not, common speed carton box printer and high speed carton box printer.

2) Design and produce the whole corrugated carton box making plant from corrugated cardboard making to carton box printing and forming for you according to your budget,planed production scale, and plant coverting area.

3) Super pre and after sales service and technical support, related parts supplying for your maintenence, engineers overseas support and service for installation and trainning.

4) 24 hours on-line service for our corrugated cardboard printing slotting machine making corrugated boxes
