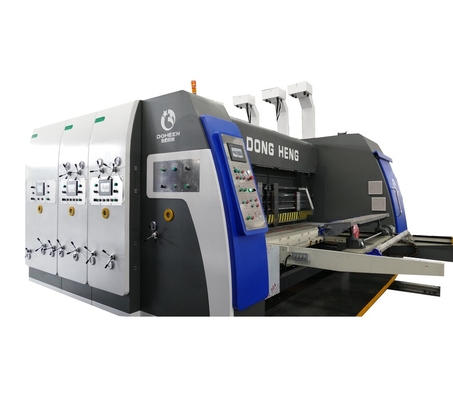

Name: Dongheng Food Corrugated Box Making Machine Fully Automatic 2 Color Printing Slotting
Brand: Dongheng Food Corrugated Box Making Machine Fully Automatic 2 Color Printing Slotting
SKU: DHY-SX
Price: 58 USD
Availability: InStock
Rating: 4.9 (198 reviews)

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Type: Packaging Line

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction worksÂ , Energy & Mining, Food & Bevera

Showroom Location: Europe

Condition: New

Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles

Packaging Type: Cartons, case

Packaging Material: Paper, corrugated cardboard

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 380V

Weight: 160000 KG

Warranty: 1 Year

Key Selling Points: Flexible Manufacturing

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: More than 5 years

Core Components: Motor, Gear, PLC

Name: Printing Slotting Machine

Model: DHY-SX

Function: Flexo Printing, Computer Slotting

Printing type: CMYK Flexo Printing

Printing Plate: Letterpress Resin Plate

Finished Products: regular slotted carton

certificate: CE

Slotting: computer slotting

printing units: 2

display: in europe

Información básica

Certificación: CE

Model Number: DHY-SX

Pago y Envío Términos

Packaging Details: Each single unit will be wrapped with cardboard and then load into the container. All spare accessories will be packed in boxes or pallets for easy unloading. All units will be fastened well inside the container, make sure that no movement or collision

Supply Ability: 10 Set/Sets per Month

Descripción de producto

Products Description

High Speed Automatic Corrugated Carton Printer Slotter Die Cutter Machines
(DOHEEN XTREM: DHY-SX920, DHY-SX1224, DHY-SX1624, DHY-SX1828, DHY-SX2536)

The automatic rotary printer slotter die cutter machine is for corrugated cardboard printing and converting.

The machine concludes: Feeding Unit + Multi Color Printing Units + Slotting Unit + Die Cutting Units. It can do the automatic
feeding, printing, slotting, die cutting in one process.

You can also add Stacking Section to collect the finished cardboard. Or you can add an Inline Folder Gluer Bundler machine to fold
the cardboard into cartons directly.

Suitable for 3/5/7 layer corrugate cardboard( as well as E flute paper board.)

MAIN FEATURES

1. Open & close type units combination.

2. High humanization request design, can accomplish the order setting, changing,production in short time, and display the current work details.

3. 7 inch colorful touch screen can 7 inch colorful touch screencan input, check, revise, and save production orders.

4.Advanced vacuum absorb lead edge automatic feeding system.

5. All drive rollers are made of high quality steel, surface hard chrome plating and lapping treated. The drive gears are made of high quality alloy steel, surface hard chrome plating and lapping treated. All main gears are auto lubricated with oil, increase the service life of the gears.

6. All assembling accessories are tempering treated to be more solid durable. All these accessories are made by high-precision processing center and grinded by numeric-control grinder.

7. Roller gaps are adjusted by high precise worm box with a range of 0-11mm, 3 three-head handles are equipped for your easier adjustment.

8. Self-locking device to lock the machine when it's working. For security, the machine cannot start without locking the machine units.

9. auto-zero device ensuring uniform adjustment of the machine.

Product Paramenters

Below are the standard dimensions for our machine. We can also customize the machine according to your requests.
Please feel free to contact our sales if there is a need.

^{Specification}	^SX920	^SX1224	^SX1624	^SX1828	^SX2236	^SX2536
^{Inner Width (mm)}	²²⁰⁰	²⁶⁰⁰	²⁶⁰⁰	³⁰⁰⁰	³⁸⁰⁰	³⁸⁰⁰
^{Speed(Pcs/Min.)}	²⁴⁰	²⁰⁰	¹⁶⁰	¹⁴⁰	¹⁰⁰	⁸⁰
^{Max. Sheet (Continous Feeding)}	^900X2050	^1200X2450	^1600X2450	^1800X2850	^2200X3650	^2500X3650
^{Max.Sheet (Skip Feeding) (mm)}	^1100X2050	^1500X2450	^2000X2450	^2200X2850	^2600X3650	^2900X3650
^{Min. Sheet (mm)}	^280X630	^350X690	^420X730	^450X750	^550X860	^650X900
^{Max. Printing (mm)}	^840X2000	^1160X2400	^1550X2400	^1750X2800	^2200X3600	^2500X3600
^{Printing Plate Thickness (mm)}	^7.2	^7.2	^7.2	^7.2	^7.2	^7.2
^{Printing Precision (mm)}	^0.5	^0.5	^0.5	^0.5	^0.5	^0.5
^{Cardboard Thickness(mm)}	^1.5-9	^1.5-11	^1.5-11	^1.5-11	^1.5-11	^1.5-11

Certifications

All of our machines are covered with CE certificate.
The workmanship quality, installation standard can all meet the EU regulations.

There is no problem for you to import, use and resell in European countries.

Marketing Campaign

The DHY-SX series can be upgraded to be full computer control.With the full computer system, you need only to input all measure data into the computer, and press "start" to finish all setting.

Customer Photos

Our Advantages

1. We have more than 20 years manufacturing exprience.

2. We have mature research and development team to design the best machine for the market.

3. We have experienced workers which have been working us from the beginning.

4. We have high precision CNC machines for our accessories machining.

5. We use all high quality accessories and components our machine.

6. We prepare sufficient accessories for our future orders to be finished in short time.

Service

PRE-SALE SERVICE

* Prompt response and quotation
* Professional and positive purchase suggestion
* Factory visit

AFTER-SALE SERVICE

* Training how to use the machine.
* Engineers available to work overseas.
* Technical support for the whole using life.
