Inicio /Productos/Máquina para hacer cajas impresas/Automatic corrugated carton box two color printer rotridicutar slottar machine corrugated box making machine

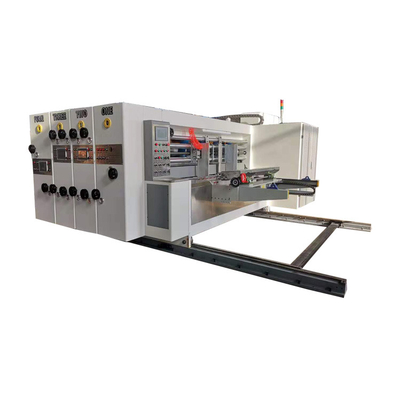

Automatic corrugated carton box two color printer rotridicutar slottar machine corrugated box making machine

1 Set
MOQ
$30,000.00(>=1 Sets)
Precio
Automatic corrugated carton box two color printer rotridicutar slottar machine corrugated box making machine
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Warranty: 1 Year
Applicable Industries: carton box making machine
Showroom Location: Mexico
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Pump, Gear, Bearing, Motor, PLC
Type: carton printing machine
Key Selling Points: High Productivity
Product name: corrugated box two color printer slottar rotridicutar machine
Application: Corrugated Carton Box Making Machine
Function: Corrugated Carton Printing Slotting Diecutting
Automatic grade: Full-Atuomatic
Speed: 250 PCS/min
Feeding way: lead edge feeder
Plate Type: Flexo Ink Printing
Machine type: High Speed Flexo Printing Machine
Colors: 1-4 Colors
Certificate: CE Certificate
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Mexico, Romania
After-sales Service Provided: Free spare parts, Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support
Información básica
Certificación: CE Certificate
Pago y Envío Términos
Packaging Details: plastic film or wooden package. Leading edge feeding type automatic flatbed corrugated carton box die cutting machine. automatic corrugated box two color printer slottar rotridicutar machine
Supply Ability: 3 Set/Sets per Month
Descripción de producto
Product Overview

automatic corrugated box two color printer slottar rotridicutar machine

1. The gear thickness of this machine is 50mm. It is quenched and tempered by 40 chrome steel forgings. After the gear is processed, the hardness can reach 45-48HRC after high frequency quenching treatment. The whole machine is equipped with a vacuum suction auxiliary leading edge paper feeding system. The paper feeding method has the functions of printing, grooving and die cutting of corrugated cardboard at one time. The computer control unit adopts multiple sets of communication computer adjustments. The host computer adopts a large-screen PLC unified control system, which can independently control the paper feeding unit, printing unit, slotting unit, and die cutting unit. The printing plate roller is equipped with a hanging plate zeroing device. And equipped with anyway foot switch. 2. The grooved part is pre-load with double crimping wheels. The slotting depth and 360° phase of the machine are electrically driven by the computer. The left and right movements of the grooved cutter head and the crimping wheel preloading wheels are all electrically adjusted by the screw. Scale reading. The slotted phase adjustment mechanism is a planetary gear structure, and the machine's transmission shaft is connected to the paper with a maximum wheelbase of 210mm to achieve a minimum of 230mm paperboard. 3. Remarks optional: die-cutting section can be equipped with free die-cutting.
FEATURES AT A GLANCE
HIGH SPEED 250PCS/MIN
AUTOMATIC COMPUTER ADJUSTMENT
INTERNATIONAL FAMOUS BRANDS
EASY OPERATION
PREFECT AFTER-SALE SERVICE
ONE YEAR WARRTANY
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Product Name
economic type high speed corrugated carton printing slotting die cutting machine
Model
economic type
Color
White gray
Size
6500*5500*2500mm
Brand
Zhaoxu
Material
Iron
Speed
120pieces/min
Maximum paper feed
1200*2400mm
Minimum paper feed
350*700mm
Printing plate roller length
2200mm
PRODUCT CONFIGURATION
HIGH QUALITY SCORER
Imported Air ACT VALVE
NSK BEARING
LEAD EDGE FEEDER
PRINTING UNIT
SLOTTING UNIT
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
Company Profile
FAQ
Q1: Are you a factory or trading company? A:1 We are a manufacture which is specialized in the production of various kinds of carton equipment for 10 years.(with export license)
Q2: Where is your factory located? How can I visit here? A2：Our factory is located in Guangdong. We can pick you up if you need, welcome to visit our factory.
Q3: What are your products? A3: Our main products are partition assembler machine, high speed printing slotting machine, carton folder gluer machine, stapler machine, etc.
Q4: How does your factory do regarding quality controlling? A4: We have one year warranty for whole machine, not including easy-damage parts. Any questions, contact with me!
