Caracteristicas

Especificaciones

Warranty: 2 years

Type: Other

Applicable Industries: Manufacturing Plant, Restaurant, Food Shop

Showroom Location: Mexico, UAE, Bangladesh

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Warranty of core components: 2 years

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear

Condition: New, New

Application: Food, Beverage, Medical, Chemical

Packaging Type: Film, Foil, case

Packaging Material: Plastic, Metal, Wood

Automatic Grade: Automatic

Driven Type: Pneumatic

Voltage: 380V

Power: 7Kw

Weight: 6300 KG

Dimension(L*W*H): 1800*1300*2700mm

Key Selling Points: High-accuracy, High productivity and stability

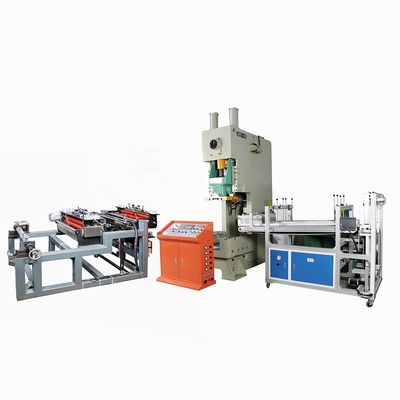

Product name: Auto alu foil container making machine line

Function: Foil container making

Material: Aluminum foil

Speed: 50-70 times per minute

CNC or Not:: CNC

Warranty:: 2 years

Certificación: CE, CE

Mold available?: Supplied according to your requirement

After Warranty Service: Video technical support, Online support, Spare parts

Local ServiceÂ Location: Pakistan, India, Mexico, UAE, Bangladesh

After-sales Service Provided: Field maintenance and repair service

Información básica

Certificación: CE, CE

Pago y Envío Términos

Packaging Details: standard exporting package, wooden case

Supply Ability: 5 Set/Sets per Month

Descripción de producto

Products Description

Model	JH21-45	JH21-60	JH21-80
Nominal Pressure (KN)	450	600	800
Slide Block Stroke (mm)	240mm	240mm	240mm
Slide stroke per minute	50-70	50-70	50-70
Maximum Die Set Height (mm)	400mm	450mm	450mm
Die set height adjustment (mm)	60mm	70mm	80mm
Slide Bottom Size (mm)	410*340mm	480*400mm	560*460mm
Stemhole size (mm)	60*60mm	60*65mm	60*75mm
Bolster surface size （mm）	990*750mm	1000*800mm	1200*800mm
Total power (KW)	5.5	7.5	8.5
Weight (kg)	4500	6300	8000
Dimension (mm)	155011502500	180013002700	220014503100

Components of this container production line:

1. Auto-feeder with lubrication system
2. Punching machine
3. Auto stacker
4.Auto scrap collector
5.Stamping mold
6. Electric cabinet

Complete Production Steps:
Feeding raw material------Lubricating material------Punching by the press------Collecting product by the stacker------Collecting
scrap by the scrap collector

Main Features:
1) The press frame is welded by steel plates, no deformation, good rigidity.
2) This machine adopts pneumatic friction clutch-brake combination, long service life, low noise, stable transmission.
3)The guide rail precision is high, can prolong the life of die. die height adjustment, inching, single and continuous operation
is convenient and reliable.
4)The aluminum foil feeding system adopts PLC control and SIEMENS servo system,feeding with high precision.
5) Optional: photoelectric safety protection device. Crankshaft can stop at any point during operation,high safety.

product display

Company Profile

Suzhou Hijoy Technology Co., Ltd specializes in R&D,production and sales of aluminum foil related products, including aluminum foil jumbo roll, kitchen foil roll, aluminum foil container, aluminum foil bag, aluminum foil processing machinery and mold, as well as other products to create a happy and joyful life. It's located in Zhangjiagang City, Suzhou Area, one of the most important manufacturing production bases in China,100 km from Shanghai.We pay special attention to customer needs, relying on the strong manufacturing capacity of Chinese enterprises, integrates resources, and are determined to provide our customers with quality products, competitive price and perfect services.

Why Choose Us

Packaging and shipping

Years of business let our customers all over the world. Customers are our best friends, we regard friendship as more important than business, cherish every opportunity to communicate with customers, do our best to quickly reply to every customer inquiry,with the best products and services to repay customers' trust in us. Every customer of the company is our greatest wealth. Welcome every friend to visit us in China!

FAQ

Q1: Where is your company? A: We are located at No.274,East Shazhou Road,Zhangjiagang City,Jiangsu Prov.,only 100km west of Shanghai.You can get here by high-speed train easily.

Q2: What’s your product range? A: Household aluminum foil Jumbo roll, small foil roll for kitchen use, aluminum foil container & bag, silicon paper, cling film, aluminum foil rewinding machine, container making machine, mold, and so on. Please contact me for the details.

Q3: May I get a cheaper price? A:A workable discount will be given if you have a larger quantity.

Q4: Can I get some sample for reference? A:Sure,,free samples are available.

Q5: Do you accept small quantity order? A:Yes,.small order is also welcome and negotiable,please feel free to contact us.More precious than profit is friendship,we’d like to grow up with our clients together.

Q6,What is your payment method? A: T/T or L/C at sight is acceptable, The other is negotiable.

Q7: Can you print my logo on the packing box? Yes, we can print your logo on box or carton.

Q8: Why choose you? A:1)10+ years export experience.

2) Good service make you free from worry. 3) We are trying to bring maximum profit to our customers and we only take small.
