Name: Factory Price Corrugated Cardboard Making High Speed Fully Automatic Folder Gluer Machine For Corrugated Cardboard Box
Brand: Factory Price Corrugated Cardboard Making High Speed Fully Automatic Folder Gluer Machine For Corrugated Cardboard Box
SKU: 2400mm/2800mm
Price: 8 USD
Availability: InStock
Rating: 4.5 (110 reviews)

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Applicable Industries: Manufacturing Plant, Printing Shops, Corrugated carton box

Showroom Location: Turkey, Saudi Arabia, India, Thailand, South Korea

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2020

Warranty of core components: 1 Year

Core Components: PLC, Engine, Motor

Condition: New

Automatic Grade: Automatic

Usage: Paper Forming Machine

Voltage: 220V/380V

Dimension(L*W*H): 13000*5000*3000mm

Weight: KG

Warranty: 1 Year

Key Selling Points: High-accuracy

Model: 2400mm/2800mm

Product name: 2400/2800mm Automatic folder gluer machine for carton box

Application: Corrugated Carton Making

Box type: Corrugated Carton

Packaging Type: Plastic Film

Driven Type: Servo motor

Speed: 280pcs/min

Color: Customized Color

Feeding way: Lead Edge

After-sales-Service: Video

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: Turkey, Saudi Arabia, India, Thailand, South Korea

After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service

Certificación: CE

Información básica

Certificación: CE

Model Number: 2400mm/2800mm

Pago y Envío Términos

Packaging Details: Soluble plastics

Supply Ability: 20 Set/Sets per Month

Descripción de producto

Product Overview

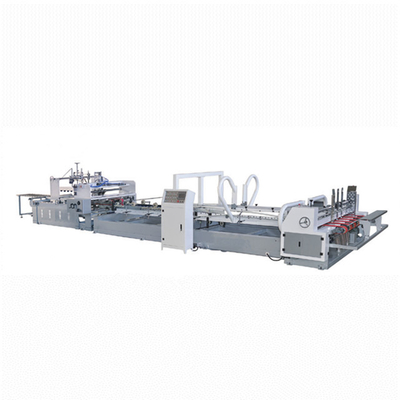

Automatic folder gluer machine

Automatic box gluer machine is composed of three parts: paper feeding part, glue folding part and counting and stacking part. It has digital display speed regulation and microcomputer amplitude modulation. It has simple, fast, reliable and accurate control mode, remote control operation can achieve automatic order switching within 100 meters, automatic paper feeding, automatic gluing folding, automatic counting, automatic stacking output, the average sticking-box speed of 200 pieces/min, the highest speed of 280 pieces/min, high efficiency, energy saving and environmental protection is our highest pursuit.

FEATURES AT A GLANCE

1. Automatically complete the top of the winding and can be completed at the same time the upper and lower two parts of the tape paste, save labor and time。

2. Applicable to a wide range of cartons, different sizes of carton adjustment is simple and quick.

3. The machine runs smoothly and reliably, and the packing effect is firm and beautiful.

4. The equipment is simple to operate and easy to maintain.

5. Automatically correct straight Angle of cartons.

PRODUCT SPECIFICATIONS

Model	2450mm	2800mm
Size A(mm)	80-880	80-880
Size B(mm)	410-2050	410-2450
Size C(mm)	160-840	160-840
Size D(mm)	170-1100	170-1100
Installation area(mm)	4000*15000	4500*15000
Power(kw)	12	12

PRODUCT CONFIGURATION

Name	Model	Specifications	Qty	Brand	Note
Main motor	YVF132M1-6	4.0KW	1	Shanghai dongte
Correction department motor	YVF112M-6	2.2KW	1	Shanghai dongte
Fan		4.0KW	1
Adjusting conveyor motor	1:10	0.1KW	2	Zhejiang libang
Upper conveyor machine	1:25	0.1KW	1	Zhejiang libang
Adjust the motor	Y80M2-6	0.55KW	2	Zhejiang libang
Turbine box	1:10		4
Bearing				SKF Swiss brand	Part
Arrange ushering bearing				LK	All
Cylinder				Taiwan Yadec	All
Solenoid valve				Taiwan Yadec	All
Frequency converter and computer touch screen computer PLC			3	Taiwan Delta	2 sets frequency converters 1 set touch screen PLC 1 set PLC
Phase motor				Hebei
Contactor				Schneider	All
Transformer				Zhejiang
Button				Zhejiang chint	All
Photoelectric switch				Omron Japan
